Methods for Parallel Connection of Optical Splitters

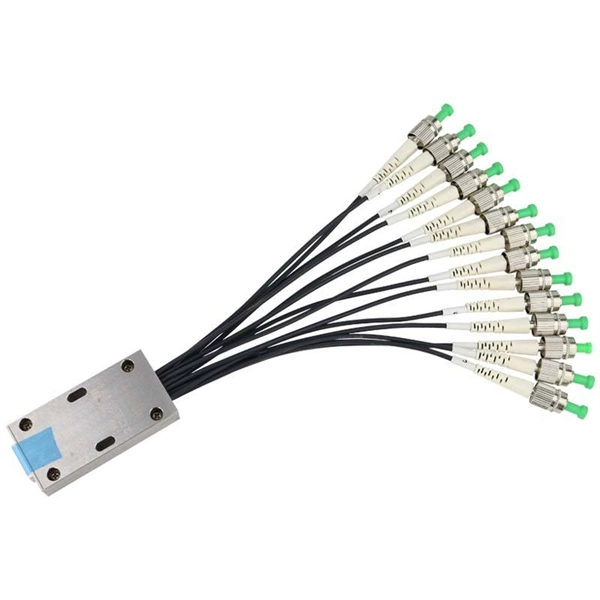

Parallel connection of optical splitters can be achieved using fused fiber couplers, planar waveguide splitters, or cascaded splitter arrangements, ensuring minimal insertion loss and uniform signal distribution.Parallel Splitting Techniques1. Fused Fiber Couplers: Fused couplers are created by fusing and tapering fibers together, allowing optical signals to be split or combined between multiple fibers. They are compact, rugged, and bidirectional, with low insertion loss (as low as 0.2 dB) and high uniformity. Standard configurations include 1x2, 2x2, 1x3, and 1x4, and multiple 2x2 splitters can be cascaded to achieve higher output counts while maintaining polarization and low backreflection . 2. Planar Waveguide and PLC Splitters: Planar Lightwave Circuit (PLC) splitters use a waveguide etched on a glass substrate to split a single input beam into multiple parallel outputs. These splitters are ideal for large-scale parallel connections due to their compact size, low insertion loss, and uniform output power distribution. They can be designed for specific splitting ratios and are widely used in passive optical networks (PONs), . 3. Cascaded Splitter Arrangement: Cascading involves connecting the output of one splitter to the input of another to expand the number of outputs. For example, connecting a 1x2 splitter to another 1x2 splitter can create a 1x3 or 1x4 configuration. Care must be taken to calculate total signal loss, as each splitter introduces insertion loss (~3.5 dB for 1x2 optical splitters). Signal amplifiers may be used to compensate for loss in multi-level cascades . 4. Diffractive Optical Elements (DOE) for Parallel Beam Splitting: For high-precision applications, diffractive beam splitters can divide a single laser beam into multiple parallel beams. These are particularly useful in microstructuring or laser processing, where simultaneous deflection of all beams is required. DOE-based splitters allow flexible beam arrangements and intensity distributions with a single optical element .Key ConsiderationsInsertion Loss: Minimize total loss by selecting splitters with low excess loss and limiting cascade levels.Uniformity: Ensure output beams have equal power for consistent network performance.Polarization Maintenance: Use polarization-maintaining (PM) splitters when required for interferometric or coherent systems.Connector Compatibility: Match connector types (SC, LC, FC) and polish types (UPC, APC) to avoid additional loss.Network Design: Choose between parallel beam splitting (outputs remain parallel) or beam divergence splitting (outputs spread out) depending on spatial layout and application requirements . By combining these methods—fused couplers, PLC splitters, cascaded arrangements, and diffractive elements—optical networks can achieve efficient parallel distribution of signals with high reliability and minimal signal degradation.
