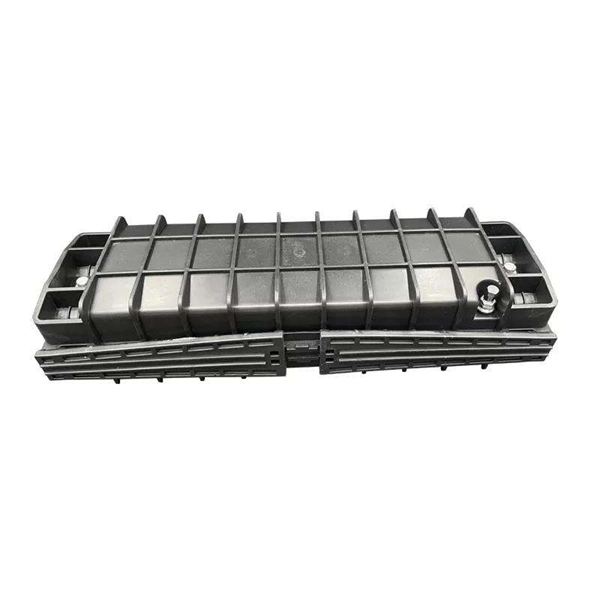

Grounding connection of the shielding layer of the optical cable junction box

The shielding layer of an optical cable junction box should generally be grounded at a single point to the metal enclosure or chassis using a low-impedance connection, with both-end grounding considered only for high-frequency or long cable runs.Single-End Grounding for Low-Frequency ApplicationsFor most low-frequency analog signals or standard optical communication systems, the shield should be grounded at one end only, typically at the source or the junction box that serves as the reference point for the signal voltage. This prevents ground loops, which can inject unwanted noise into the signal lines and degrade performance. Grounding at a single point ensures that the shield effectively diverts electromagnetic interference (EMI) away from sensitive electronics without creating a path for current to flow along the shield itself, preserving signal integrity and system stability .Both-End Grounding for High-Frequency or Long CablesWhen the optical cable carries high-frequency signals (above ~100 kHz) or the cable length approaches a significant fraction of the signal wavelength, grounding the shield at both ends may be necessary. This provides a low-impedance path for high-frequency noise currents and reduces the risk of the shield acting as an antenna. In such cases, the shield should still be connected to the metal enclosure or chassis rather than directly to the circuit ground to avoid interference entering the equipment .Practical Installation TipsChassis Connection: Treat the shield as an extension of the junction box or equipment enclosure. Use a low-impedance connection to the metal housing to ensure effective EMI protection .Avoid Pigtails: Do not use long, thin wires to connect the shield, as they act as inductors and reduce shielding effectiveness at high frequencies .Maintain Continuity: Ensure the shield is continuous through connectors and junction boxes. Any breaks can compromise EMI protection .Label Grounding Points: Clearly mark grounding points in drawings and on-site to prevent accidental disconnection or improper grounding during maintenance .Separation from Power Cables: Keep shielded optical cables physically separated from high-power or noisy equipment to minimize capacitive and inductive coupling .SummaryFor optical cable junction boxes, single-point grounding to the metal enclosure is the standard for low-frequency systems, while both-end grounding is reserved for high-frequency or long cable runs. Always ensure a low-impedance, continuous connection to the chassis, avoid pigtails, and maintain proper separation from noise sources to maximize shielding effectiveness and system reliability .
